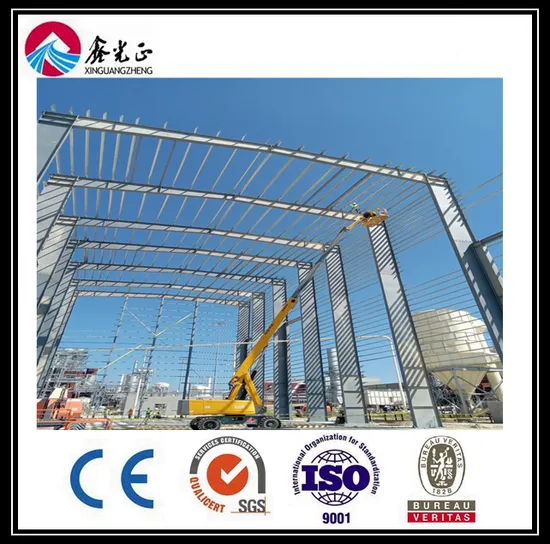

Commercial Building Portal Frame Warehouse Prefabricated Structure (BYSS

Basic Info.

Model NO.	BYSS-101
Size	Size Can Be Designed on Request
Colour	a Variety of Colors to Choose From
Connection Form	Bolt Connection
Member	Steel Column
Type of Steel for Building Structure	H-Section Steel
Carbon Structural Steel	Q235, Q345
Residential Wall Structure	Bottom Wall Beam
Application	Steel Workshop, Steel Structure Platform, Steel Fa
Surface Treatment	Painted or Galvanized
Cladding	Corrugated Steel Sheet or Sandwich Panel
Accessories	High Strength Bolt, Self Tapping Screw, etc
Covering Sheet	Ridge Covering Sheet, Trim and Flashing, Gutter
Window	Aluminum Alloy Window
Door	Sliding Door, Roller up Door, etc
Material	Steel Structure
Usage	Warehouse, Villa, Dormitories, Temporary Offices, Workshop
Certification	ISO, CE
Customized	Customized
Transport Package	Ship Container
Specification	customized size
Trademark	xgz
Origin	China
HS Code	9406900090
Production Capacity	5000t/Month

Product Description

Commercial Building Portal Frame Warehouse Prefabricated Structure (BYSS-101)

Product Description

Windproof grade: 12 grade
Seismic resistance: Grade 8
Span life: More than 25 years
Size: Customized
Color: Customized

1)Steel structure project is the third generation construction. It adopts H type steel, C type steel and Z type steel to combine or build framework.
2)Roof and wall are color compressing corrugated steel or color steel sandwich panel. Steel structure has basically substituted traditional reinforced concrete in developed country.
3)It has many excellent characteristics like light weight, big span, fewer materials, low cost, saving basic, short building cycle, beautiful appearance, etc.
4)It is widely applied to workshop, storage, office block, carpark and family house, etc

Design Common Norms

"Steel Design Code" (GB50017-2003)

"Cold-formed steel structure technical specifications" (GB50018-2002)

"Construction Quality Acceptance of Steel" (GB50205-2001)

"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)

"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)

Component and Characteristics of the Construction

The main frame (columns and beams) is made of H section steel, steel grade is Q235 or Q345

The envelope construction net is made of cold form C-style purlin

The wall and roof are made of color steel board or sandwich panels

Doors and windows can be designed at anywhere suit to different requests, and can sliding type or roll up

Type

Ventilation could be by window or ventilator

The light transfer zone could be added on the wall or roof with material sun glass board.

Connection Method

The columns are connected with the foundation by pre-embedding anchor bolt

The beams and columns, beams and beams are connected with high intensity bolts

Construction Advantage

Could be designed according to different purpose and environment condition

Long life span, could be more than 50 years

Quick and easy install work and the more economic friendly

Could be moved and recycle

Strong seismic and wind resistance

Application

Workshop, warehouse, office buildings, supermarkets, logistic warehouses, showrooms,

Hanger, shelter, etc

Prefabricated House is a kind of light steel for the frame to sandwich panels for the building envelope materials, standards for space module series combination of elements connected by bolts, the new concept of economic activities in the environmental housing.

Performance:
1) Light steel structure
2) Wall panels and roof panels are color steel sandwich panels
3) Doors, windows and interior partitions can be flexibly fixed
4) Easy to assemble and disassemble for several times without damage
5) Cost saving and transportation convenient
6) Anti-rust and normally more than 10 years using life

No.	Type	Materials
1	steel frame	1 H section steel frame : Q345 steel galvanized or paint
		2 Purline: Galvanized C/Z section steel
		3 Guard bar:Round or square tube
2	Supporting system	1 Tie bar : Round tube
		2 Steel frame brace: round bar or angle steel
		3 Knee brace :Angle steel
4	Roof protecting system	1 Panel : Corrugated steel sheet
		2 Ridge tile: Color steel sheet
		3 Self tapping screw: M5.5*50
		4 edge cover : color steel sheet
5	Fastener system	1 Anchor bolts: M24 Q235 steel
		2.Bolts: 4.8S / 8.8S /10.9 S Galvanized
		3 Nuts:Galvanized
16	Loading	20 GP, 40HP, 40 GP, 40 OT
